Easy to use with color touch panel

TREND GRAPH screen

The set program pattern or progress state of a program can be checked on a graph. There is a scaling function that changes the temperature and time scale to make the program pattern easy to see.

USB connector for data recording

Automatic cleaning mode

Control method and exhaust mode can be selected according to the test purpose.

Emphasizing the correlation with many test conditions conventionally performed, two control methods (saturation and unsaturation) and three exhaust modes (slow cooling with humidity maintained mode, cooling with moisture kept mode and rapid exhaust mode) are installed in this product. You can select a control mode and exhaust mode from them according to the test purpose.

Color touch panel

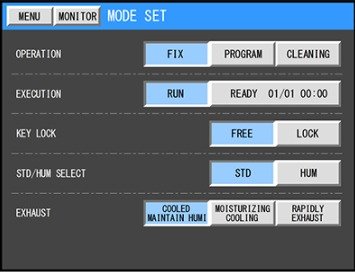

MODE SET screen

Operation mode, execution mode, operation selection, STD / HUM, Exhaust mode can be set. Touching the key changes the screen to the detail setting screen of each item.

Specifications

The operation record for temperature, humidity and pressure can be stored in an external memory such as USB memory. Even if there is no optional device such as a recorder, it is possible to keep an operation record.

In addition to a fixed-value operation mode and programmed operation mode, it is equipped with a cleaning operation mode. You can perform automatic cleaning under conditions effective for cleaning the inside of the chamber.

Cooling tank for drainage

Hot water after a test is cooled in the cooling tank and discharged safely. The heat-resistant PVC pipe (equivalent to JISK6776) can be used for drainage piping.

Cooling tank for drainage

The programmable auto-start function that can specify the start time according to the desired end time is provided as standard. (Date and time setting)

Slide tray

A sample table (tray) on which samples are placed is a sliding type in which the tray is drawn out of the chamber by pulling the door to the front.

Easy connection to voltage application terminals

The voltage application terminals are arranged on the inner face of the door. Connection work with specimens at a voltage application test can be executed outside of the chamber. (The number of voltage application terminals is 20 as standard.)

A color touch panel that integrates various button operations and displays of numerical values and graphs, and alarm messages is installed.

MONITOR screen

Specialized in visibility, the operation state and various figures are displayed in a large size. (Pressure indication is equipped as standard.)

Remote operation using special software

The chambers can be operated from an external terminal using special software. It is possible to monitor, adjust, and operate without being restricted by conditions such as the installation location and the number of installed machines.
